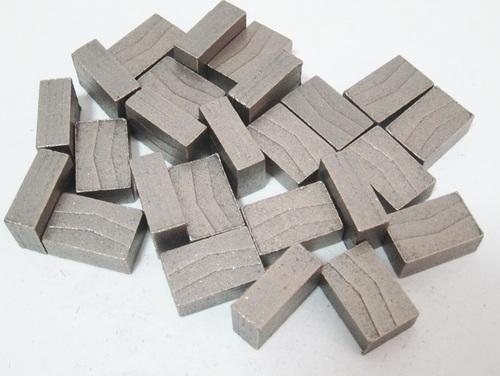

Diamond Segment

Block Cutting Segment And Blade For Granite

PRODUCT FEATURES

  • 1) The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan
  • 2) Good cutting result:smooth cutting,flat surface and even size
  • 3) Stable cutting,narrow cutting gap,stone waste reduction
  • 4) M-Shape segment is easy for diamond opening
Diameter Steel Core(mm) Head Size(mm) No. Shape Application
900 5.0 24x7.0/6.2x13(15,20) 64 Z3T/Z3T-M (Conical) Granite
1000 5.0 24x7.0/6.2x13(15,20) 70 Z3T/Z3T-M (Conical) Granite
1200 5.5 24x7.4/6.6x13(15,20) 70 Z3T/Z3T-M (Conical) Granite
1400 6.0 24x8.0/7.2x13(15,20) 92 Z3T/Z3T-M (Conical) Granite
1400 6.5 24x8.4/7.6x13(15,20) 92 Z3T/Z3T-M (Conical) Granite
1600 7.2 24x9.2/8.4x13(15,20) 108 Z3T/Z3T-M (Conical) Granite
1800 7.5 24x10.2/9.2x13(15,20) 120 Z3T/Z3T-M (Conical) Granite
2000 8.0 24x11/10x15(20) 128 Z3T/Z3T-M (Conical) Granite
2200 9.0 24x11/10x15(20) 132 Z3T/Z3T-M (Conical) Granite
2500 9.0 24x12/11x20(30) 140 Z3T/Z3T-M (Conical) Granite
2700 9.0 24x12/11x20(30) 140 Z3T/Z3T-M (Conical) Granite
3000 9.3 24x13/12x20(30) 160 Z3T/Z3T-M (Conical) Granite
3500 9.5 24x13.5/12.5x20(30) 180 Z3T/Z3T-M (Conical) Granite
